Hydraulic Drilling Rigs

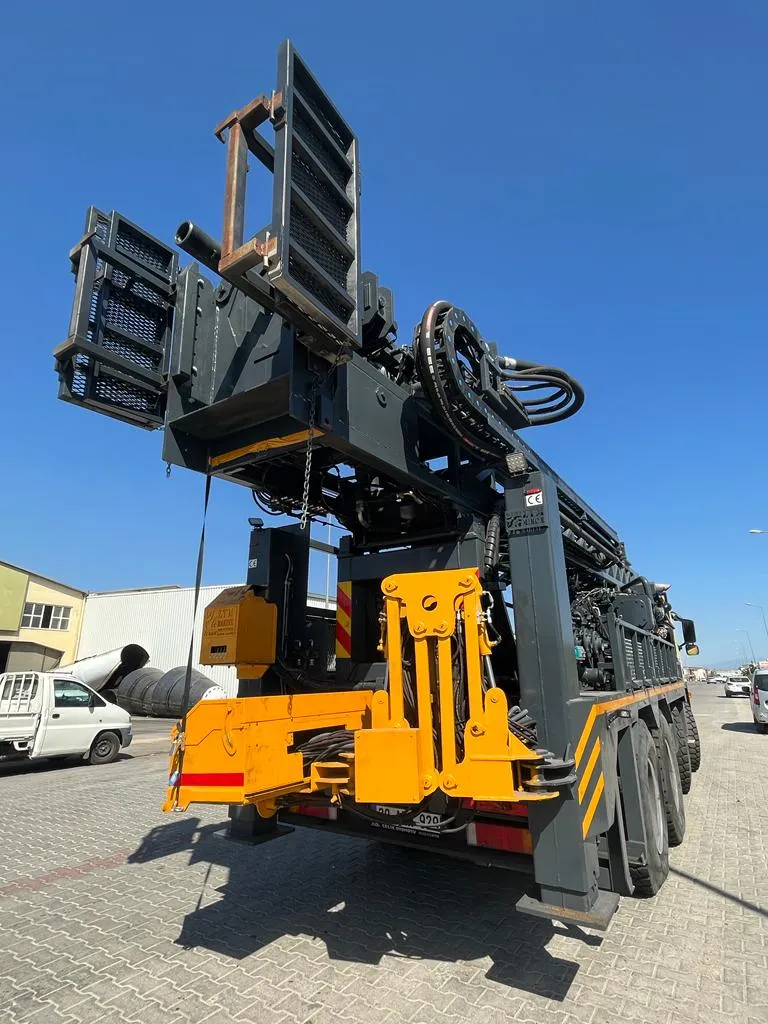

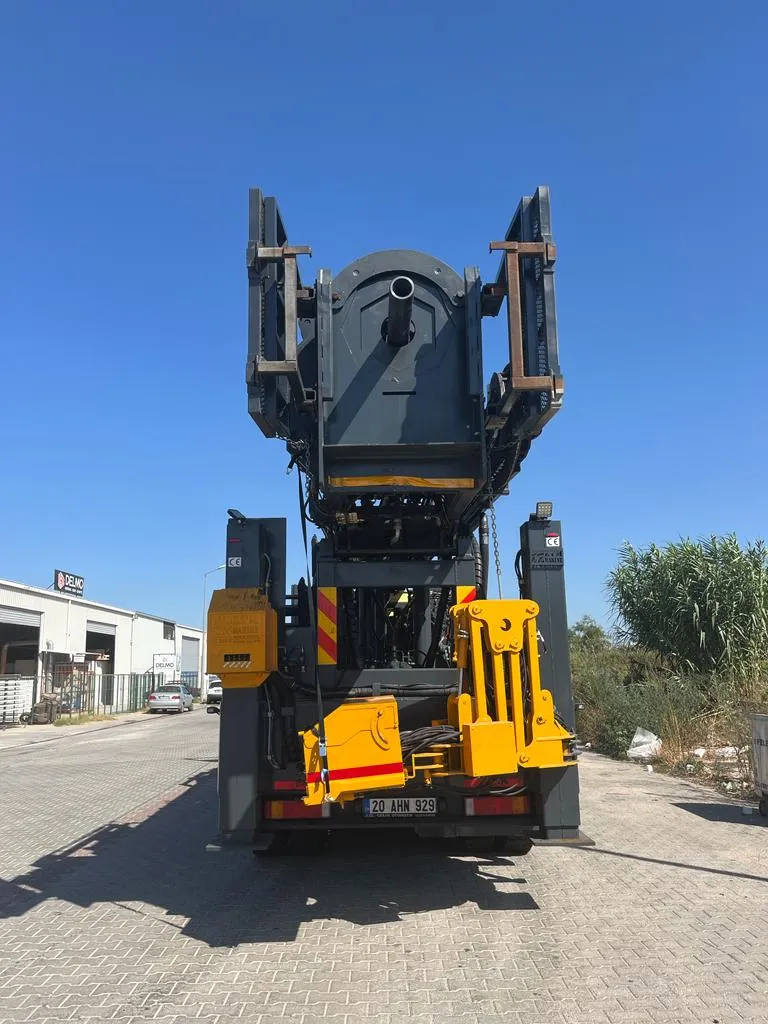

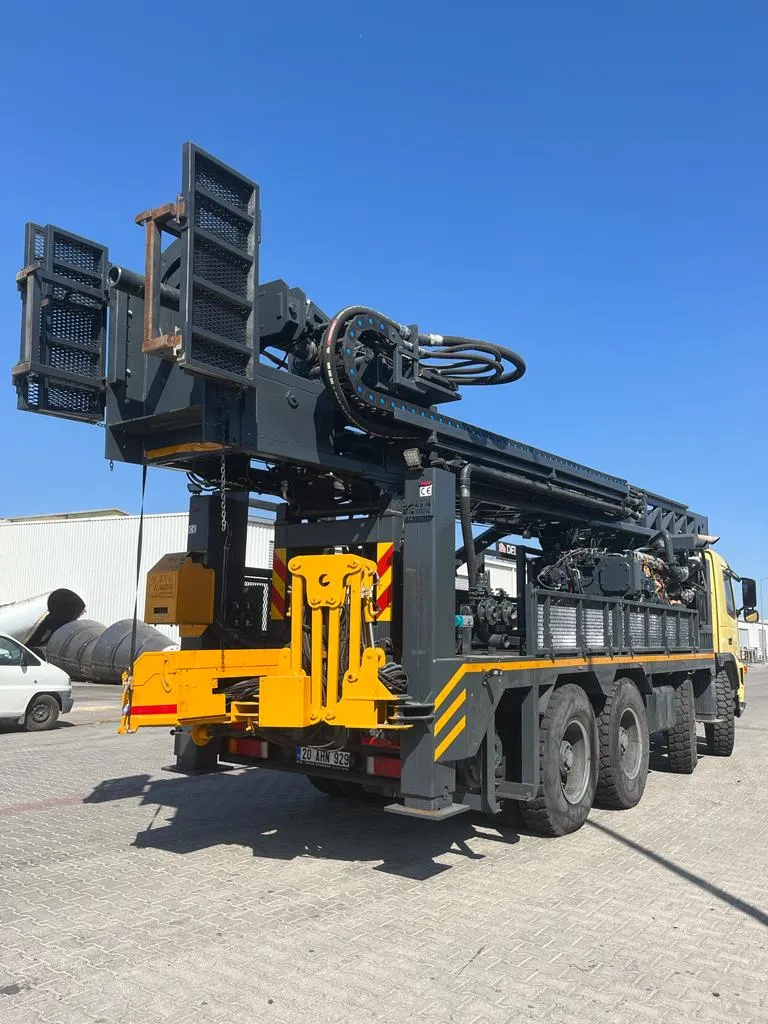

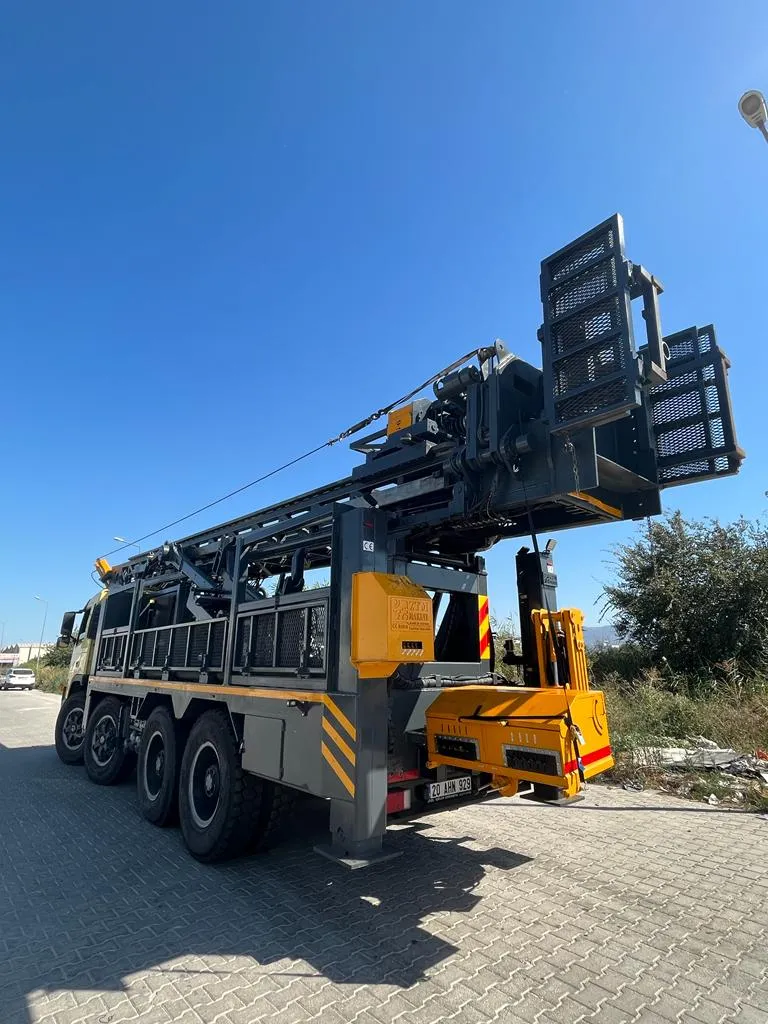

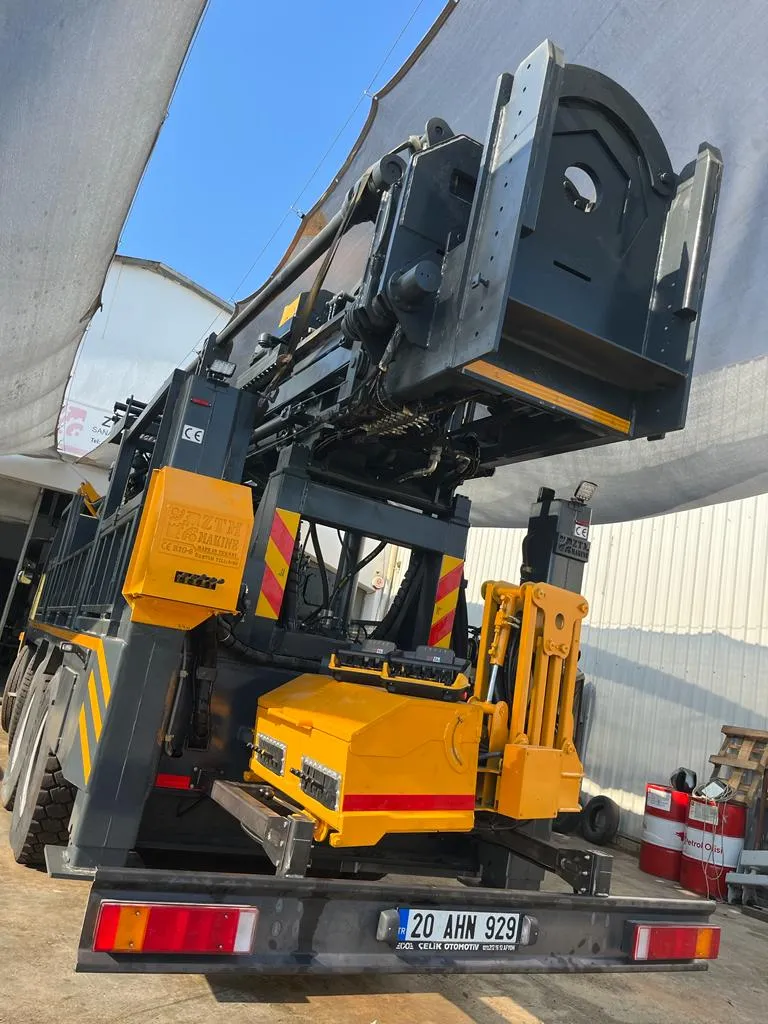

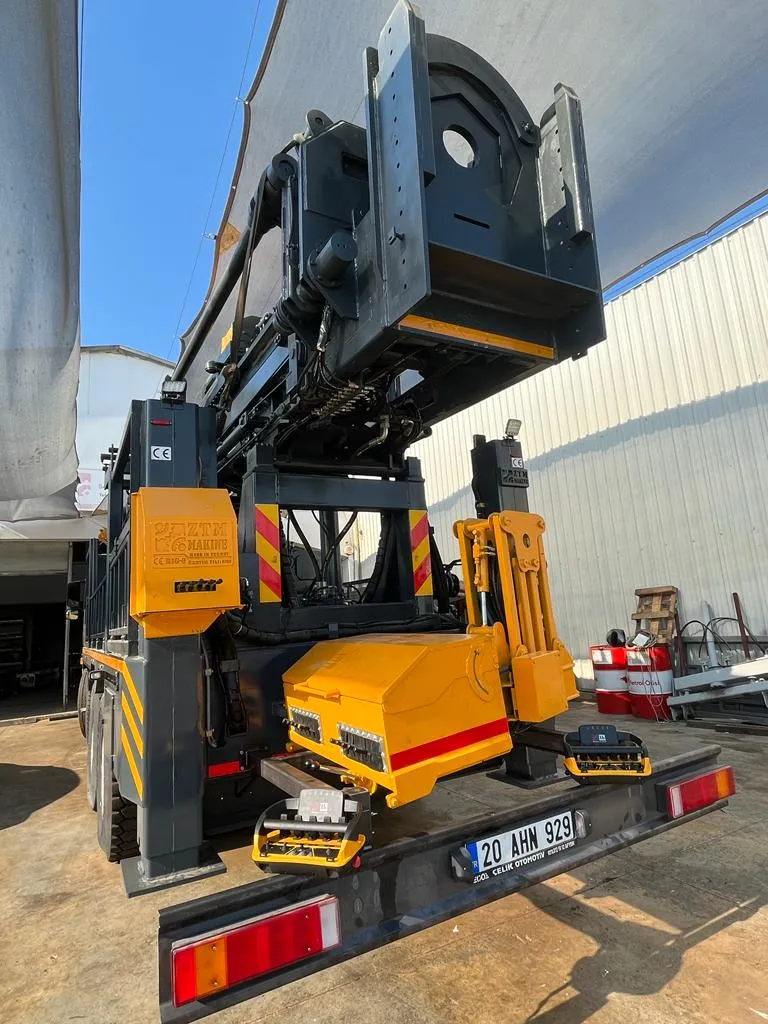

ZTM500SZTM500S | RIG6
The S model of the ZTM500 group, for deep water and industrial wells.
- Carrier chassis
- 6x4
- Emission class
- Euro 6
- Carrier engine net power
- 309 kW
- Deck engine net power
- 285 – 400 kW
The S model of the ZTM500 group, for deep water and industrial wells.
ZTM500 group rigs are designed for deep water wells and industrial wells, with up to 16,600 Nm rotary torque, 30,000 – 40,000 kgf pull-up force and drilling capacity up to 500 m at 12 ½". The rig is mounted on a 6x4 carrier and equipped with a mast rated at 35,000 – 45,000 kg, main and auxiliary winches, a 12" power tong and automatic lubrication.
Available with the remote control system, allowing the operator to run the drilling from a safe distance.
Optional equipment
- Remote control systemA wireless controller runs feed, rotation, power tong and winch functions from a safe distance, keeping the operator away from rain, mud and foam in line with occupational safety rules.
- Mud pumpPressure and flow rate are specified according to project requirements.
- Pipe loading robotMechanises feeding of drill pipes to the mast, making pipe handling faster and safer.
Applications
Technical specifications
| Specification | Metric | Imperial |
|---|---|---|
| Carrier chassis | 6x4 | |
| Emission class | Euro 6 | |
| Carrier engine net power | 309 kW | 414 hp |
| Deck engine net power | 285 – 400 kW | |
| Rotary head torque | 16,600 Nm | 12,244 lbf·ft |
| Rotary speed | 0–160 rpm | |
| Drilling diameter and depth | 12 ½" – 500 m · 22" – 250 m | |
| Pull-down force | 10,000 kgf | 22,046 lbf |
| Pull-up force | 30 000 – 40 000 kgf | |
| Max. feed / pull-up speed | 0.5 m/s | 1.64 ft/s |
| Main winch capacity | 3,000 kg | 6,614 lb |
| Auxiliary winch capacity | 1,500 kg | 3,307 lb |
| Mast working capacity | 35 000 – 45 000 kg | |
| Mast length | 10 330 – 11 300 mm | |
| Power tong diameter | 12" | |
| Drill pipe length | 6 100 – 6 500 mm | |
| Drill pipe thread | 4" NC38 | |
| Water / foam pump | 55 bar · 90 L/min | |
| Centrifugal pump | 6 bar · 30 L/min | |
| Automatic lubricator | 20 L/h | |
| Cooler capacity | 2 × 350 L | |
| Hydraulic outriggers | 4 × 1 100 mm | |
| Transport dimensions (H × W × L) | 4 000 × 2 550 × 10 000 – 11 600 mm | |
| Weight (carrier + rig) | 20 000 + 12 000 kg | |
| Electrical system | 24 V |
