ZTM500XAZTM500XA / Telescopic | RIG5

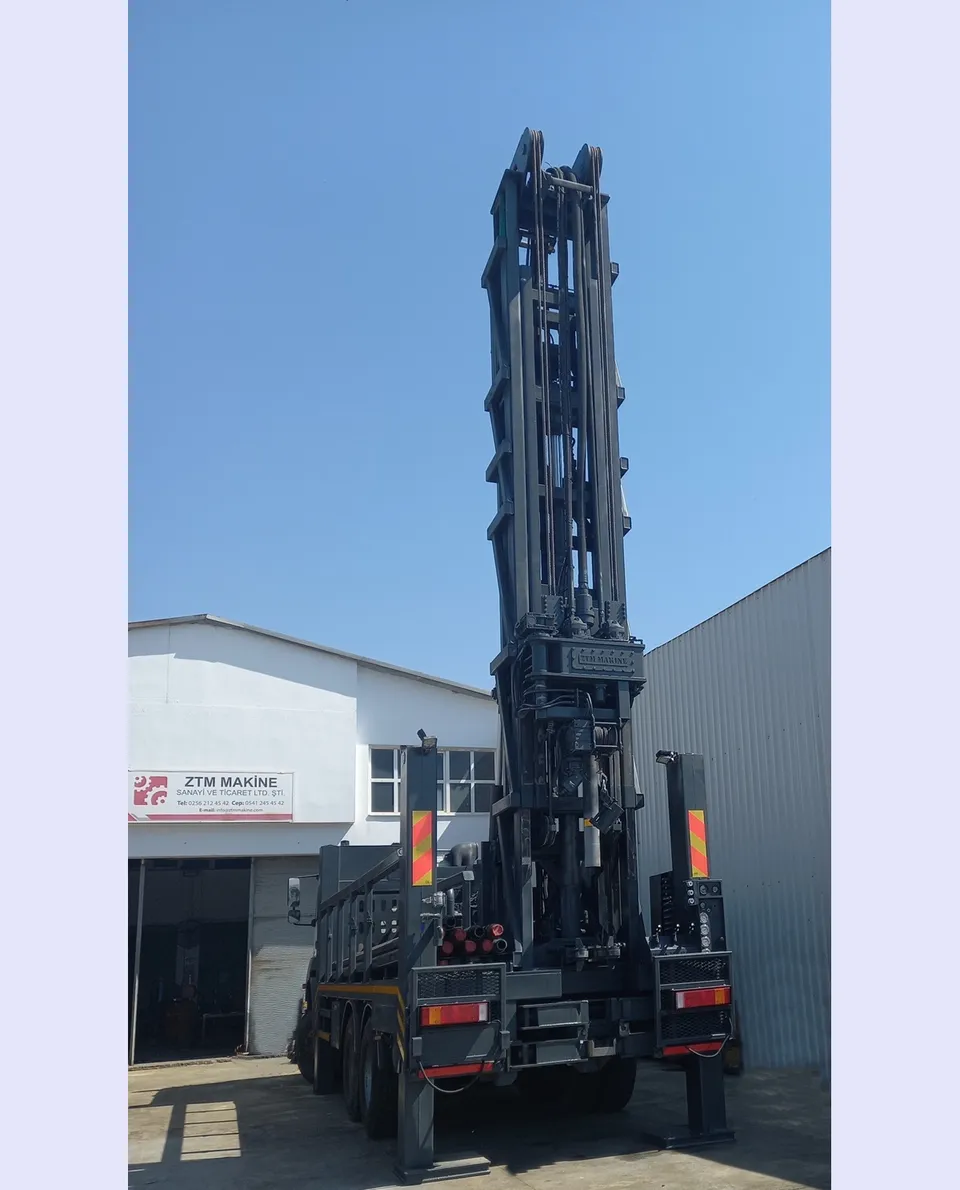

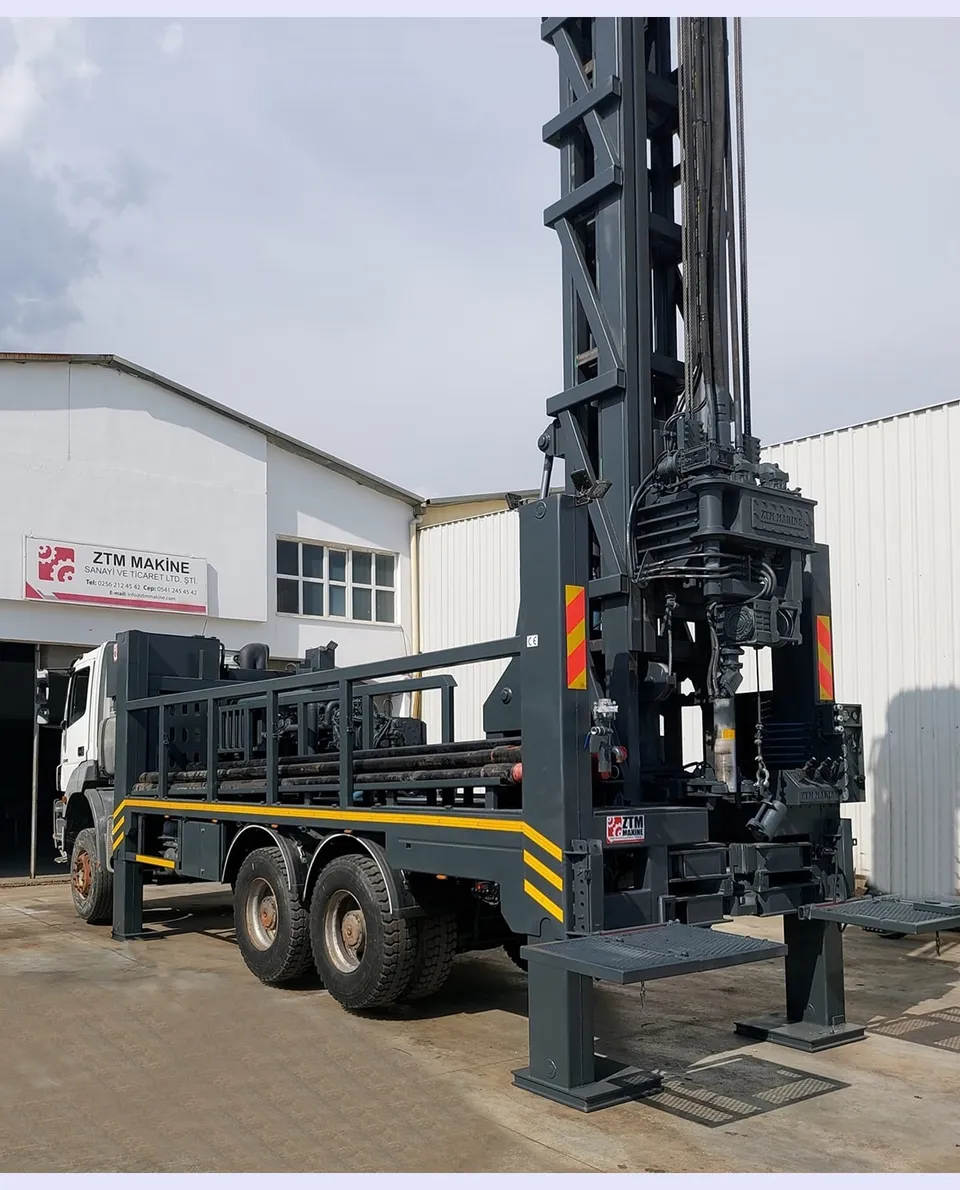

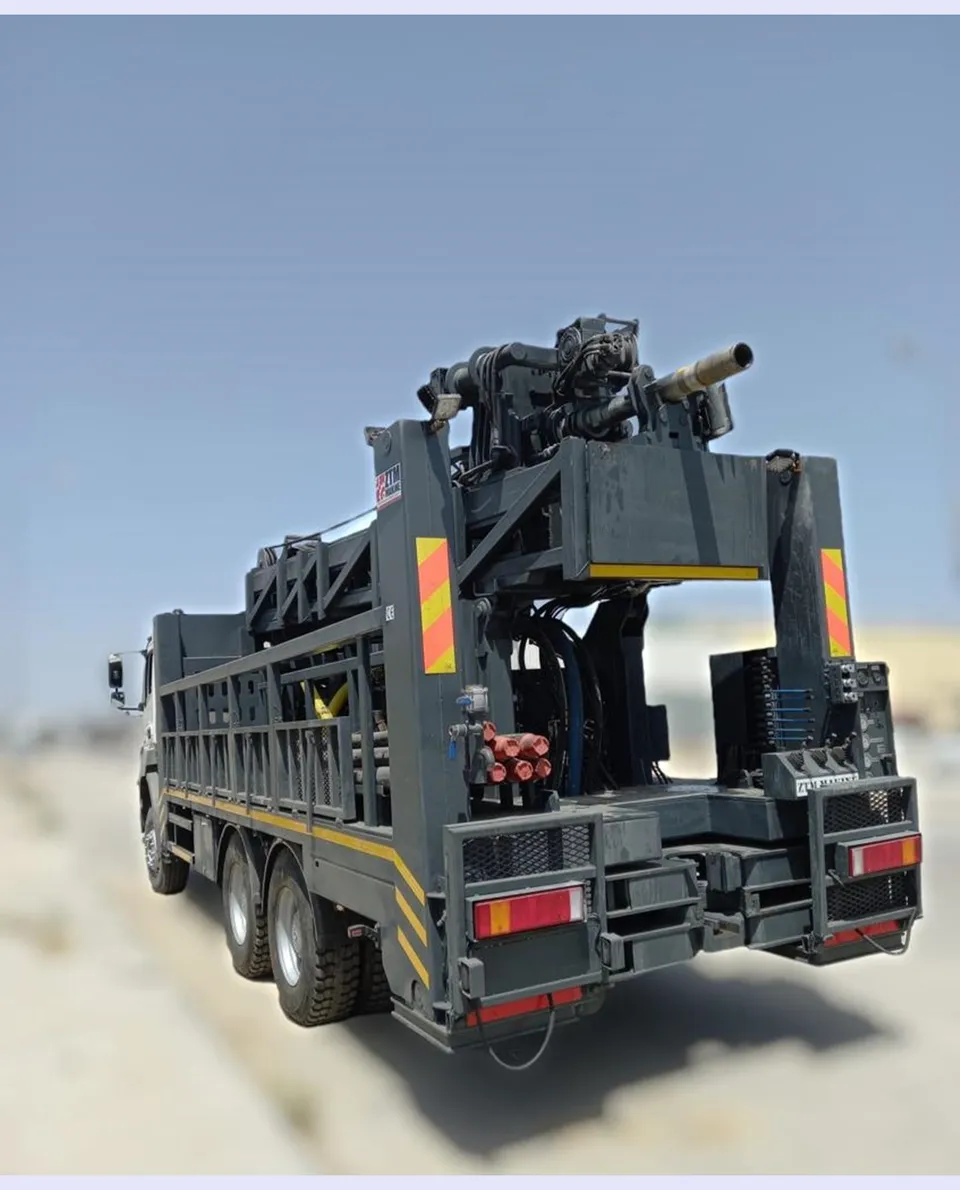

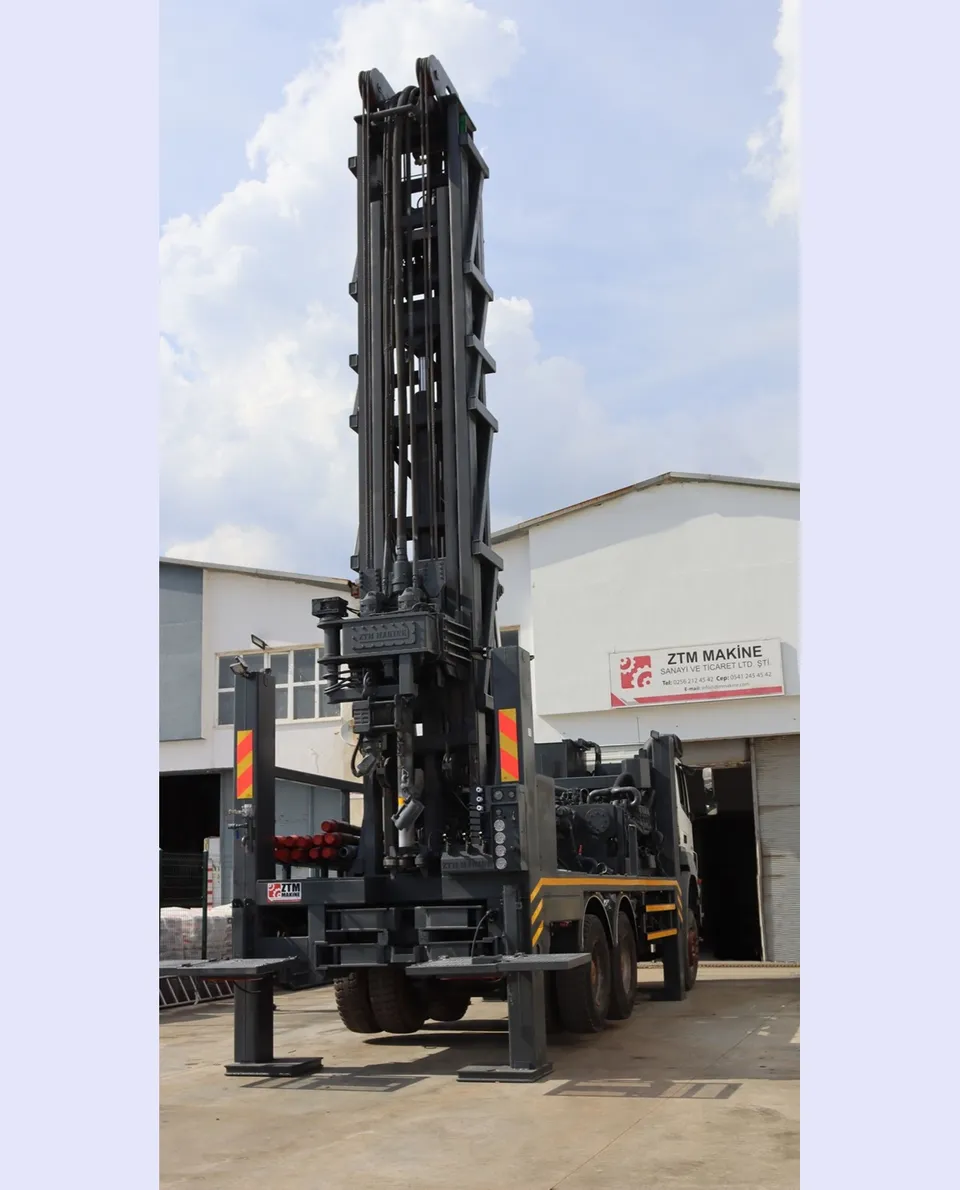

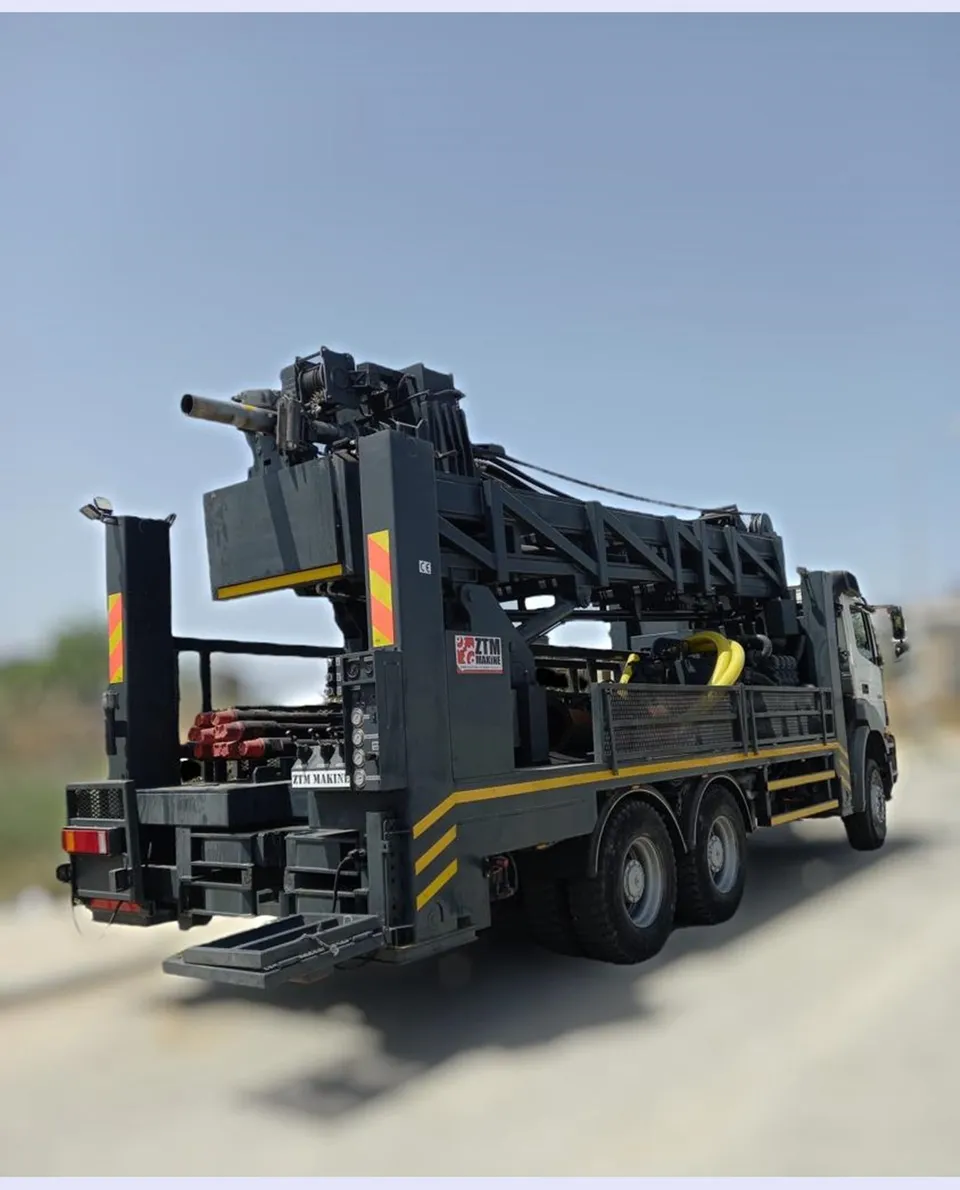

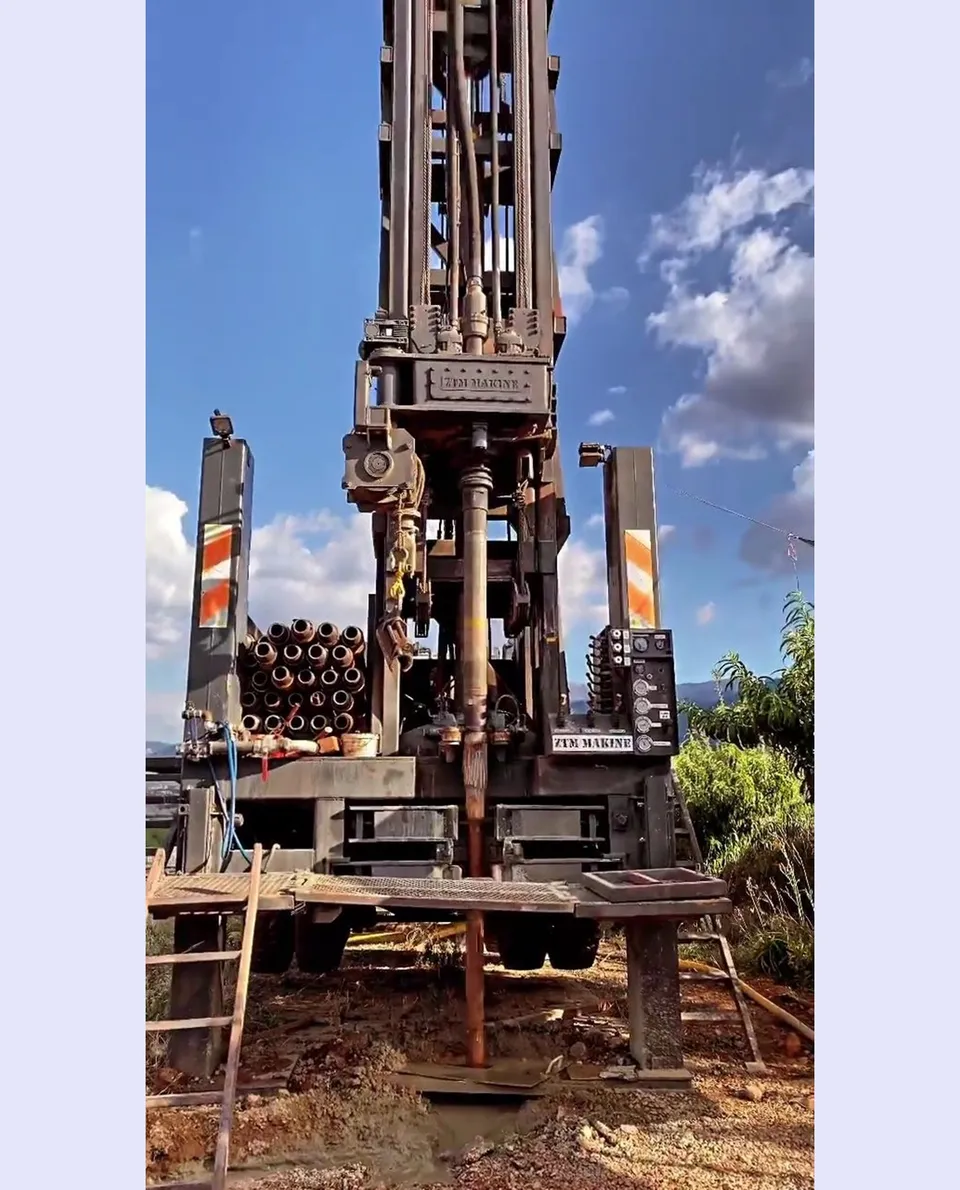

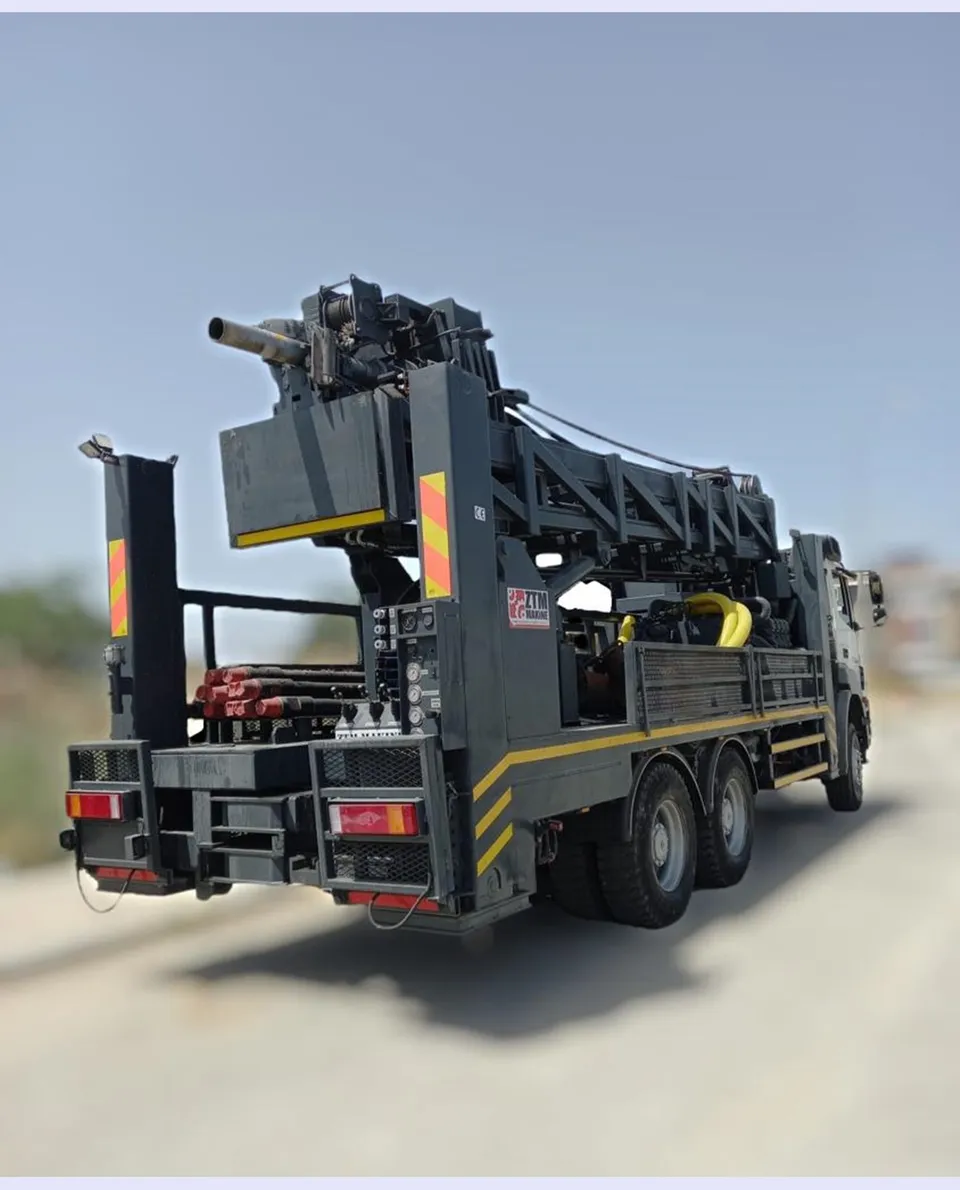

ZTM500XA with telescopic mast, built for a "one well a day" pace.
- Carrier chassis
- 6x4
- Emission class
- Euro 6
- Carrier engine net power
- 309 kW
- Deck engine net power
- 285 – 400 kW
ZTM500XA with telescopic mast, built for a "one well a day" pace.

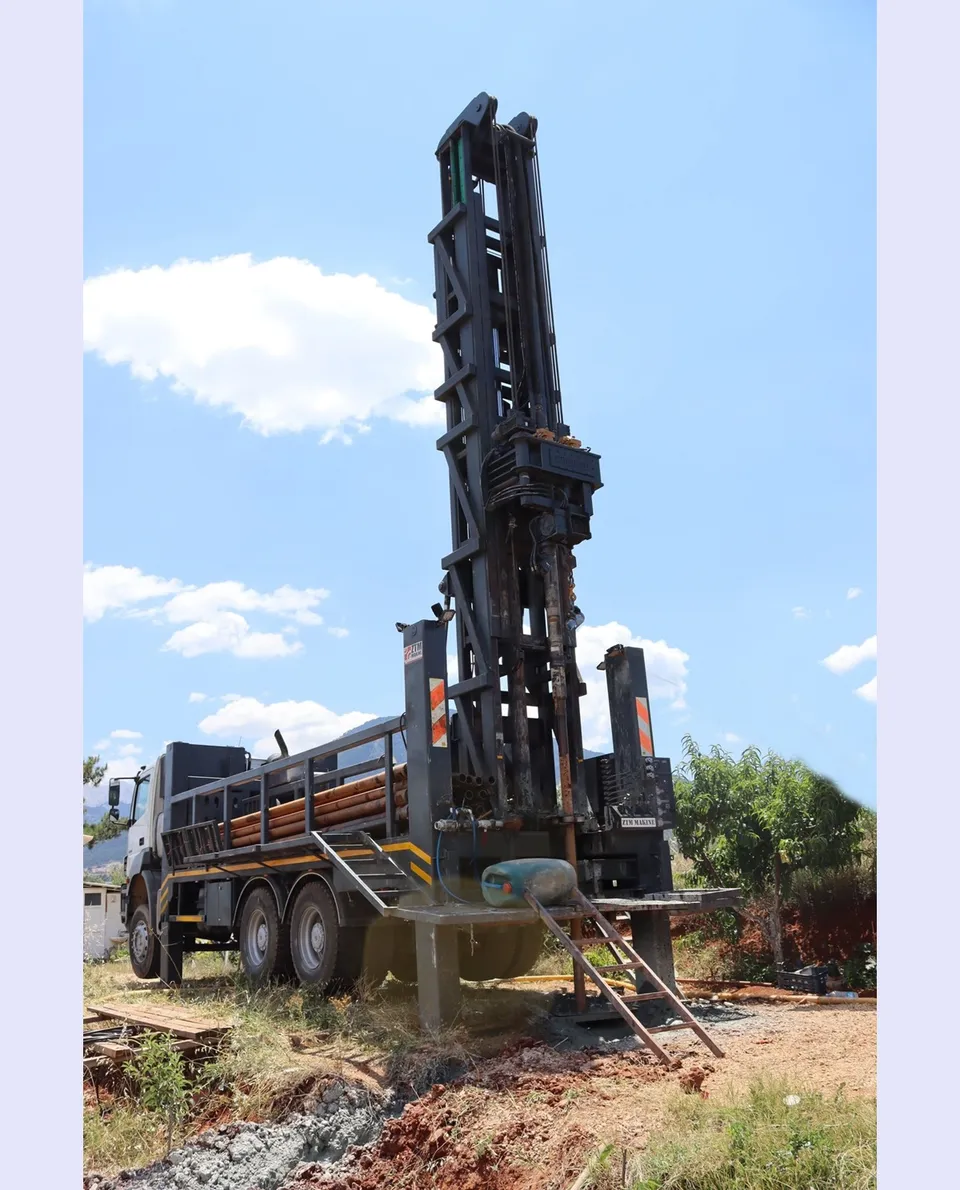

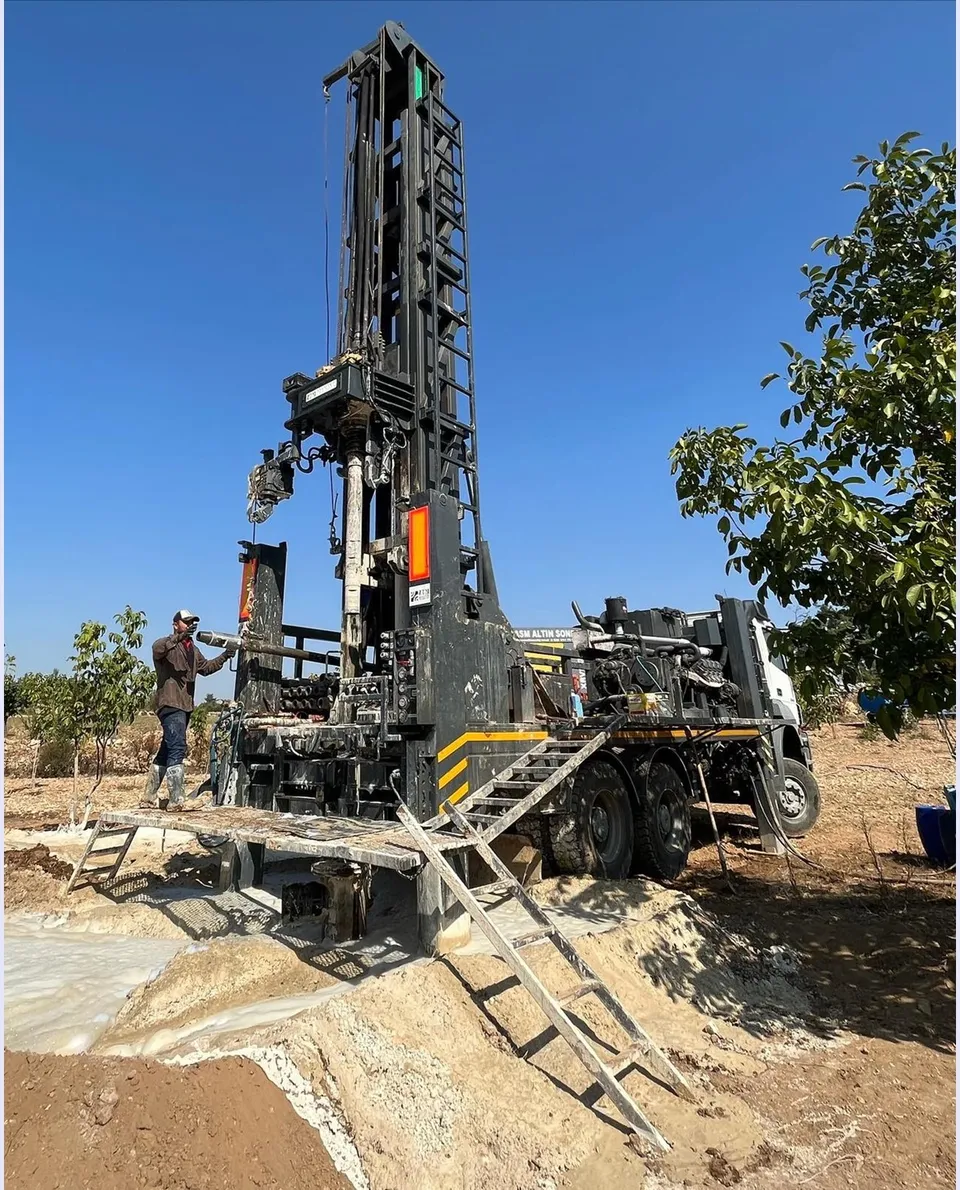

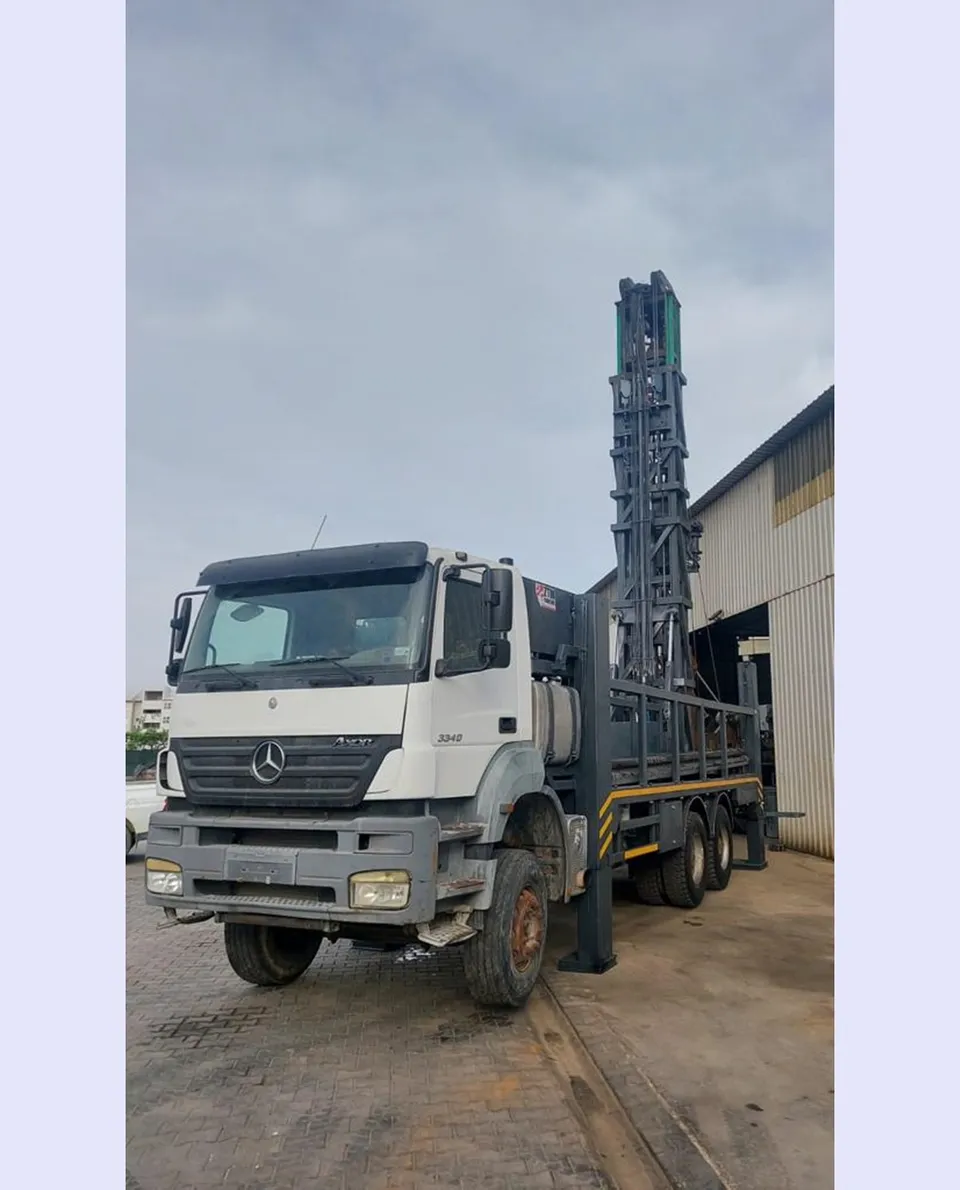

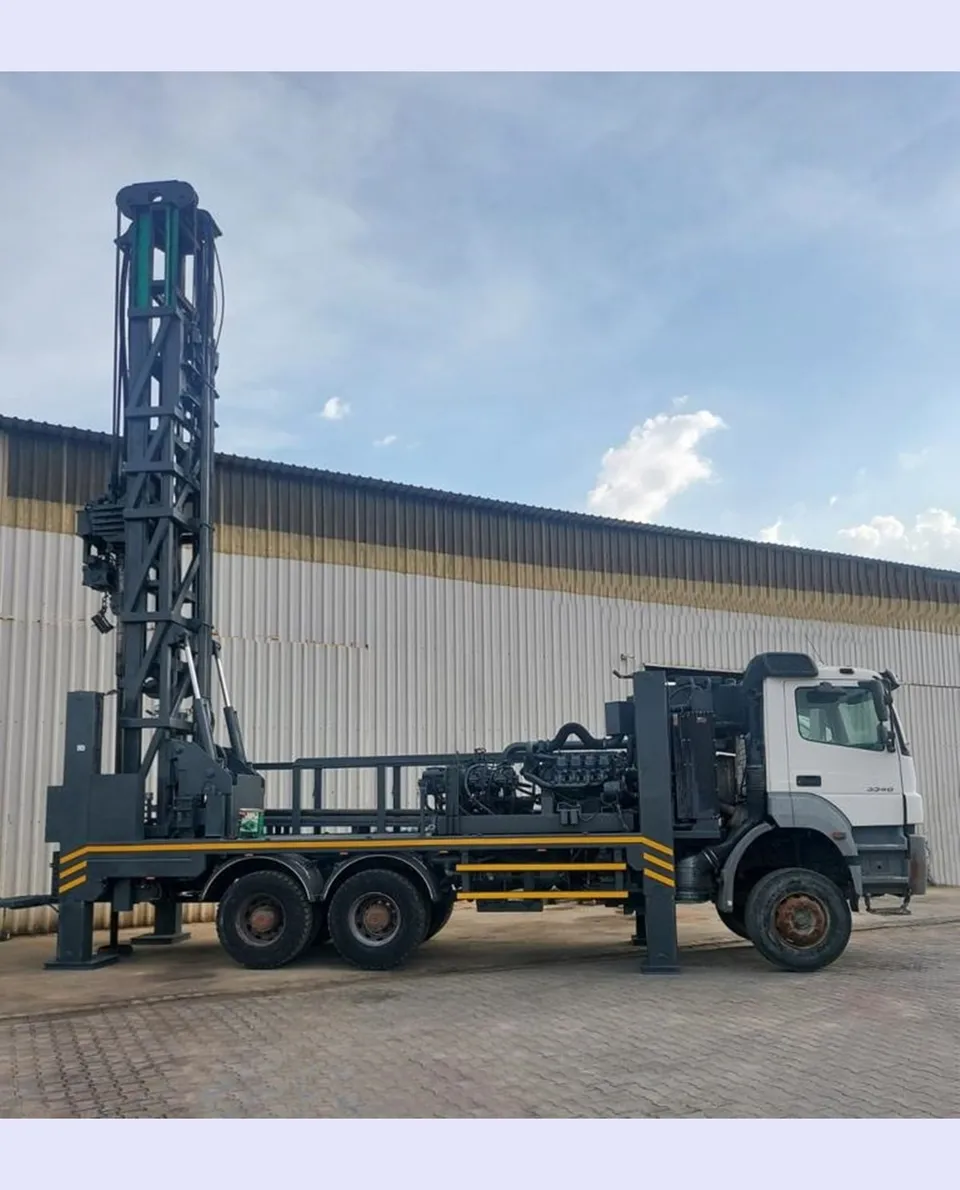

ZTM500 group rigs are designed for deep water wells and industrial wells, with up to 16,600 Nm rotary torque, 30,000 – 40,000 kgf pull-up force and drilling capacity up to 500 m at 12 ½". The rig is mounted on a 6x4 carrier and equipped with a mast rated at 35,000 – 45,000 kg, main and auxiliary winches, a 12" power tong and automatic lubrication.
Available with the remote control system, allowing the operator to run the drilling from a safe distance.
Optional equipment

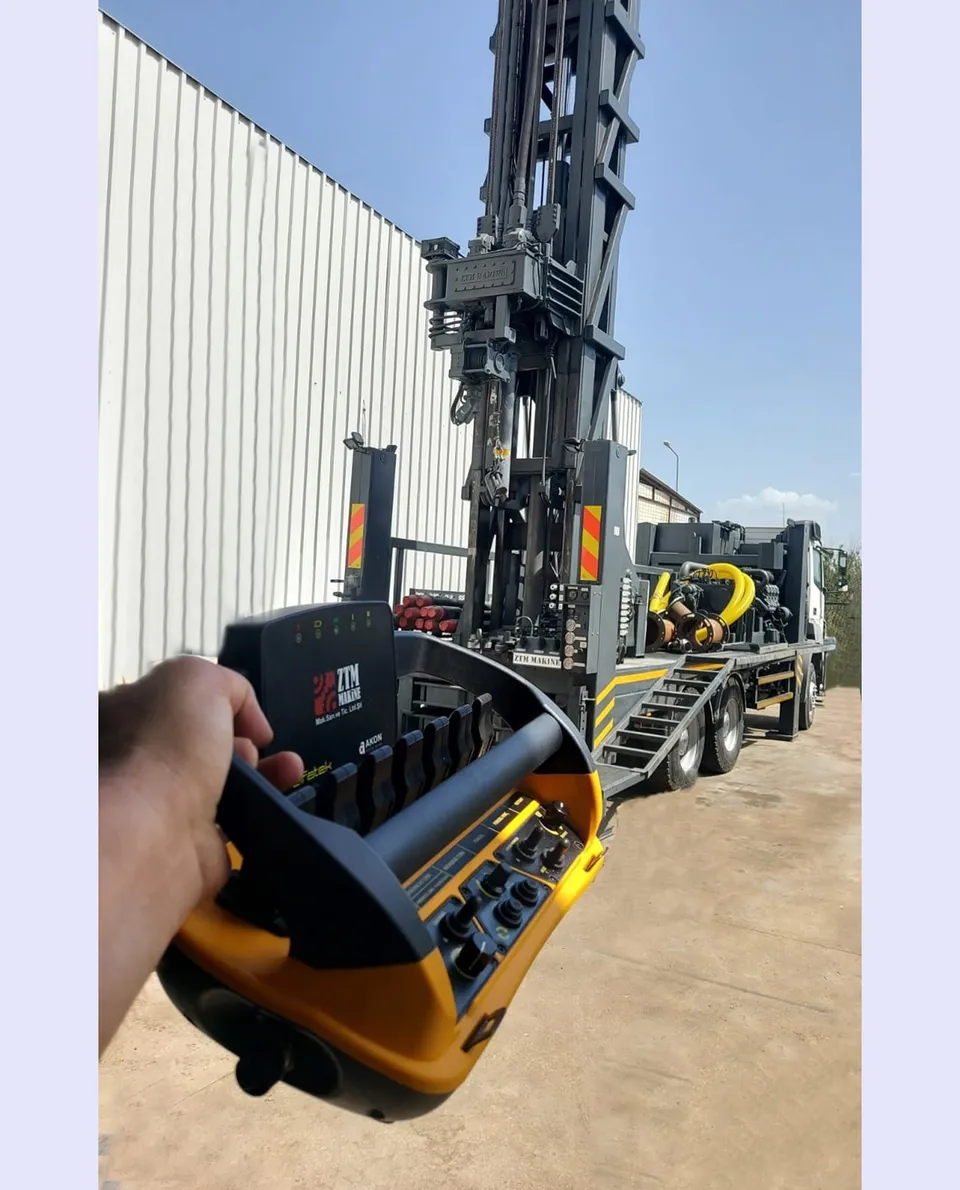

- Remote control systemA wireless controller runs feed, rotation, power tong and winch functions from a safe distance, keeping the operator away from rain, mud and foam in line with occupational safety rules.
- Mud pumpPressure and flow rate are specified according to project requirements.
- Pipe loading robotMechanises feeding of drill pipes to the mast, making pipe handling faster and safer.
Applications
Technical specifications
| Specification | Metric | Imperial |
|---|---|---|
| Carrier chassis | 6x4 | |
| Emission class | Euro 6 | |
| Carrier engine net power | 309 kW | 414 hp |
| Deck engine net power | 285 – 400 kW | |
| Rotary head torque | 16,600 Nm | 12,244 lbf·ft |
| Rotary speed | 0–160 rpm | |
| Drilling diameter and depth | 12 ½" – 500 m · 22" – 250 m | |
| Pull-down force | 10,000 kgf | 22,046 lbf |
| Pull-up force | 30 000 – 40 000 kgf | |
| Max. feed / pull-up speed | 0.5 m/s | 1.64 ft/s |
| Main winch capacity | 3,000 kg | 6,614 lb |
| Auxiliary winch capacity | 1,500 kg | 3,307 lb |
| Mast working capacity | 35 000 – 45 000 kg | |
| Mast length | 10 330 – 11 300 mm | |

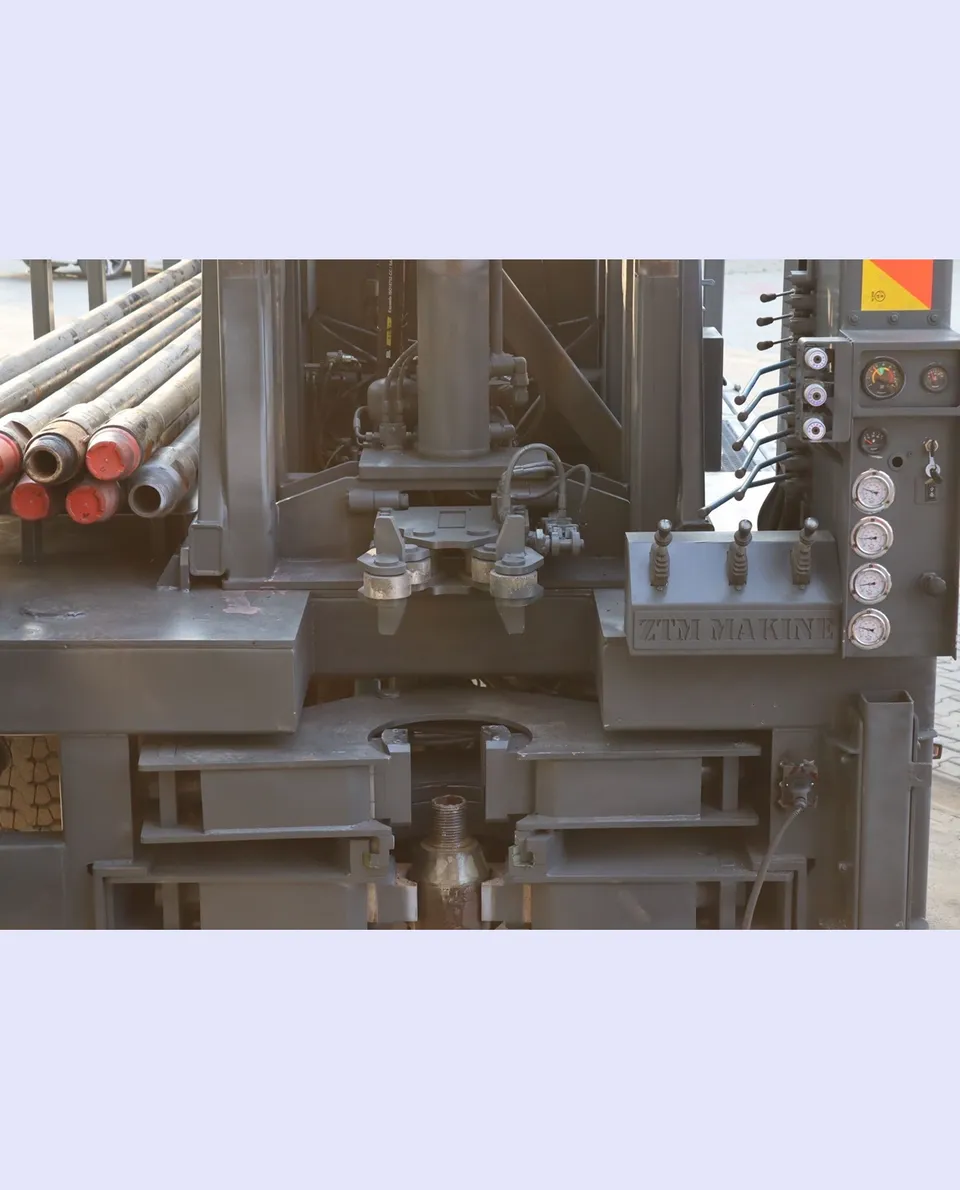

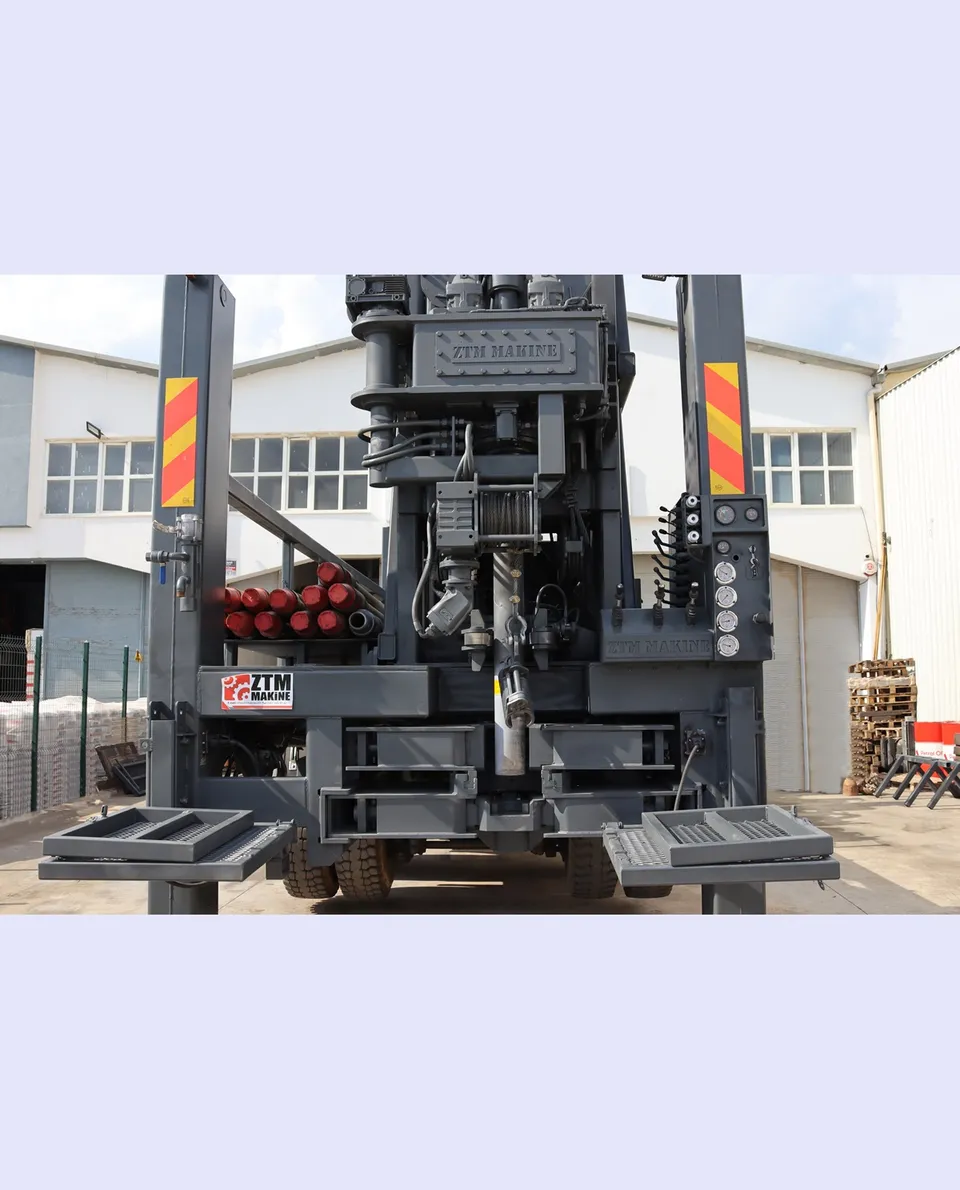

| Power tong diameter | 12" | |
| Drill pipe length | 6 100 – 6 500 mm | |
| Drill pipe thread | 4" NC38 | |
| Water / foam pump | 55 bar · 90 L/min | |
| Centrifugal pump | 6 bar · 30 L/min | |
| Automatic lubricator | 20 L/h | |
| Cooler capacity | 2 × 350 L | |

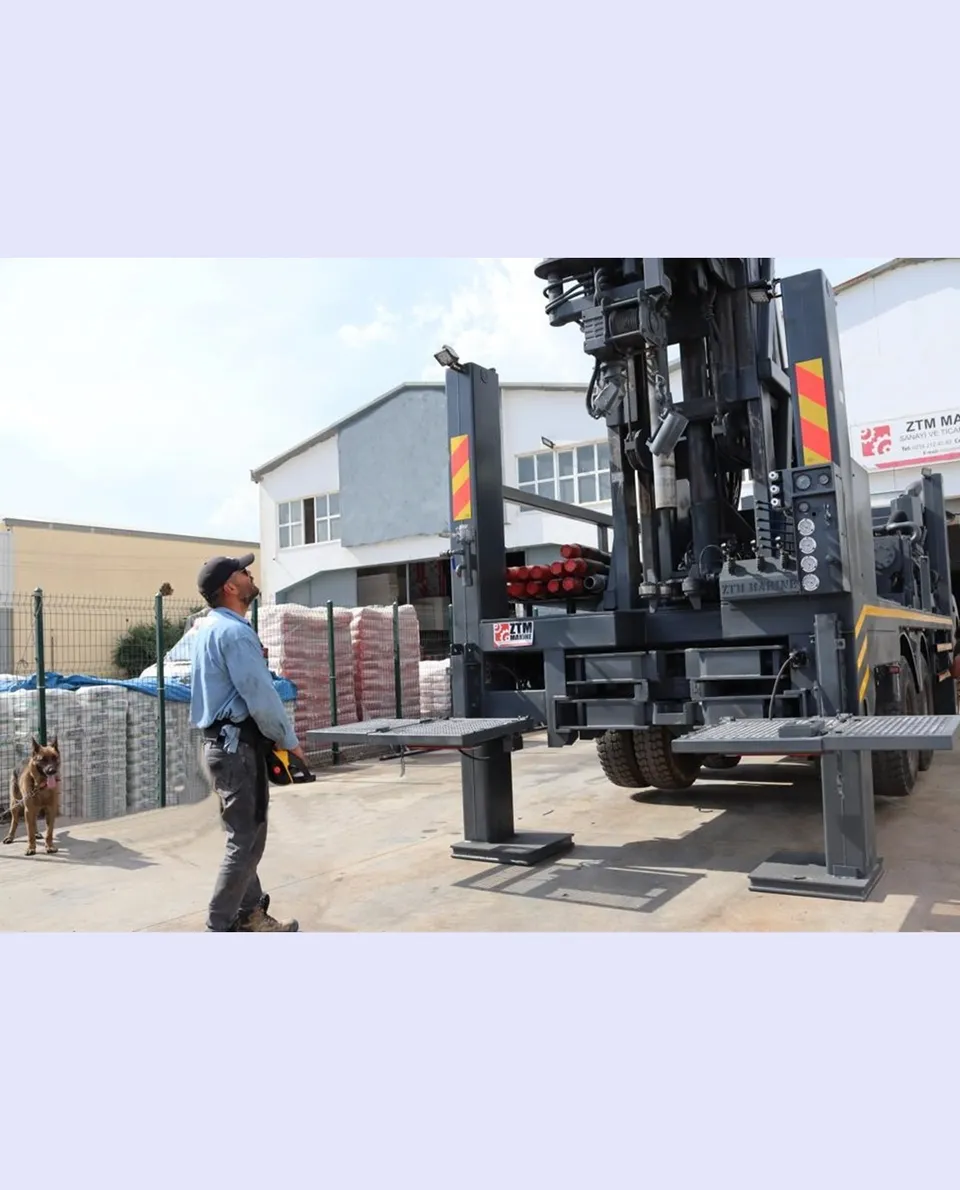

| Hydraulic outriggers | 4 × 1 100 mm | |
| Transport dimensions (H × W × L) | 4 000 × 2 550 × 10 000 – 11 600 mm | |
| Weight (carrier + rig) | 20 000 + 12 000 kg | |
| Electrical system | 24 V |
